why is my water heater tripping the breaker

• 🟢Usually Manageable

  Monitor it and run the safe checks below before spending money.

• 🟡Inspection Recommended

  Have a professional look at it soon to prevent damage or failure.

• 🔴Potentially Serious

  Stop using the appliance and get professional help right away.

  This is the level for this problem: Dangerous — act now.

• Shut off the breaker, confirm zero voltage with a non-contact tester, remove the access panel and insulation, disconnect both element wires, and set a multimeter to resistance (ohms) between each element terminal and the bare tank metal.›

  Takes: 10 min · Tools: Non-contact voltage tester, Multimeter, Screwdriver

  Shut off the breaker, confirm zero voltage with a non-contact tester, remove the access panel and insulation, disconnect both element wires, and set a multimeter to resistance (ohms) between each element terminal and the bare tank metal.

  Expect: A good element reads infinite resistance (OL) between either terminal and the tank.

  What it means: Any measurable resistance or continuity beep between a terminal and the tank confirms that element is shorted to ground.

  Next step: Replace the shorted element — match wattage (typically 4,500W) and thread type (screw-in or bolt-in) to the original.

  Never skip the voltage-tester confirmation step. Elements carry 240 volts and a shorted one has already proven it can conduct to grounded metal.

• With power off and elements confirmed good, visually inspect both thermostats for scorch marks, and check for continuity across the high-limit switch contacts with a multimeter.›

  Takes: 8 min · Tools: Multimeter, Flashlight

  With power off and elements confirmed good, visually inspect both thermostats for scorch marks, and check for continuity across the high-limit switch contacts with a multimeter.

  Expect: No visible scorching, and the high-limit switch shows continuity only when its reset button is pressed in.

  What it means: Scorch marks or a switch stuck closed regardless of temperature indicate a failed thermostat causing the short.

  Next step: Replace both thermostats as a set — they're inexpensive and age together.

• With power off and confirmed dead, visually inspect the wire nuts, lugs, and insulation at the disconnect box and the top of the water heater for scorch marks, melted plastic, or looseness you can wiggle by hand.›

  Takes: 6 min · Tools: Flashlight, Screwdriver

  With power off and confirmed dead, visually inspect the wire nuts, lugs, and insulation at the disconnect box and the top of the water heater for scorch marks, melted plastic, or looseness you can wiggle by hand.

  Expect: Connections are tight, wires are firmly seated, and insulation is intact with no discoloration.

  What it means: Any blackened wire nut, melted insulation, or wire that pulls loose by hand confirms a wiring fault.

  Next step: Do not simply retighten a burned connection — cut back to clean copper and use a new connector, or call an electrician if the wire gauge looks undersized.

  Burned insulation on a 240-volt circuit is a fire risk that can recur even after retightening; when in doubt, have a licensed electrician verify wire gauge and connections.

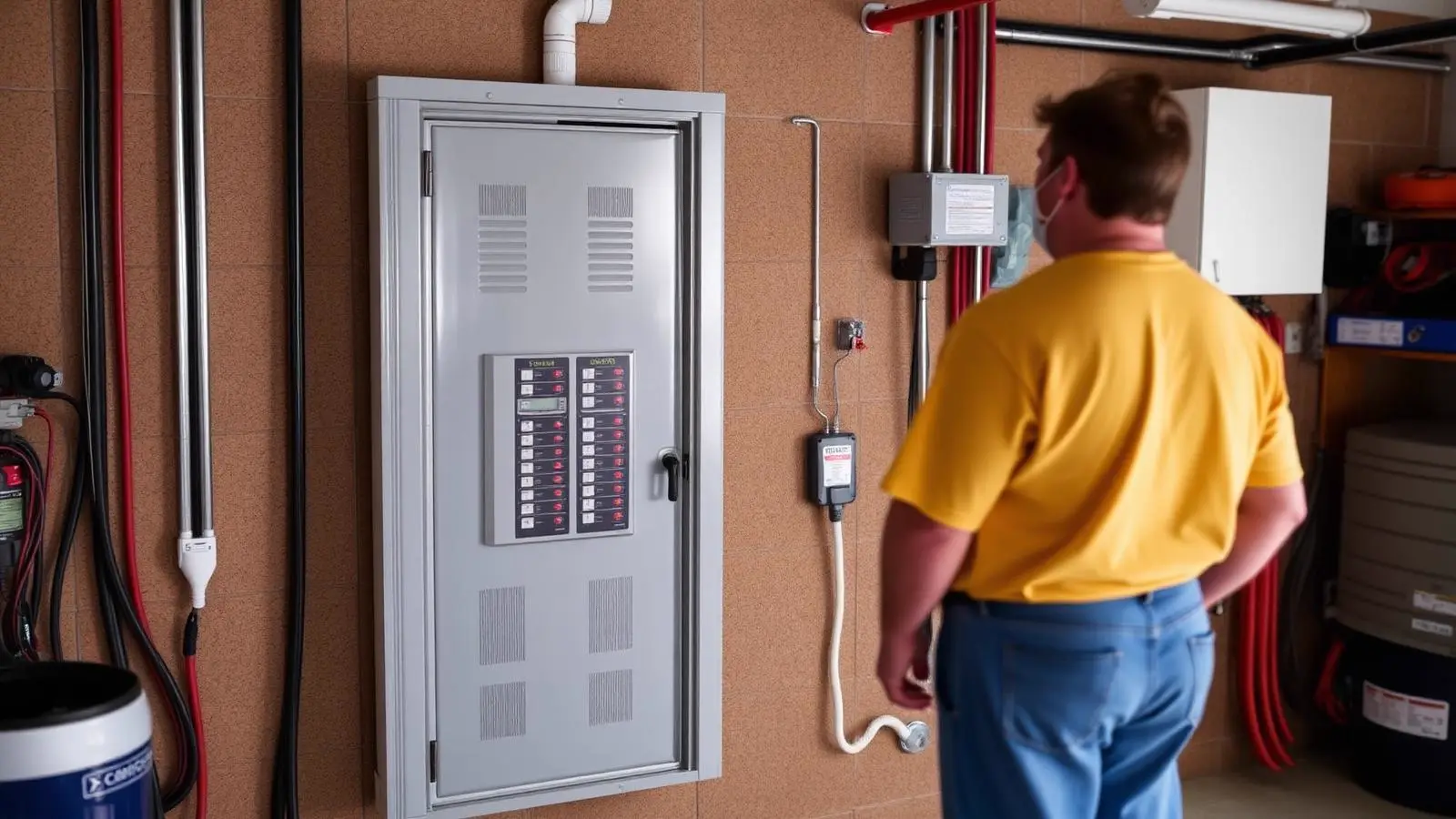

• Confirm the breaker's amperage rating printed on its switch matches the water heater's nameplate requirement (typically 30A for a 4,500W element at 240V).›

  Takes: 3 min · Tools: Flashlight

  Confirm the breaker's amperage rating printed on its switch matches the water heater's nameplate requirement (typically 30A for a 4,500W element at 240V).

  Expect: Breaker rating matches the nameplate-specified circuit size.

  What it means: A mismatch — such as a 20A breaker on a 30A-rated circuit — means the breaker was wrong for the load from the start.

  Next step: Have an electrician verify wire gauge is rated for a 30A breaker before swapping; wire and breaker size must match.

1. #1

   Heating element shorted to the tank (grounded element)

   Most common cause

   Sediment buildup, mineral scale, and years of heating cycles crack the ceramic insulator inside a heating element, letting the 240-volt element wire make direct contact with the metal tank, which is grounded. That creates a dead short to ground the instant power is applied.

   It's the single most common cause of an instant trip on an electric water heater and is straightforward to confirm with a multimeter and the power off.

   Exact symptoms

   • Breaker trips immediately or within a few seconds of being reset
   • Trips even with both thermostats and elements disconnected from each other, isolating one element
   • No hot water at all, or only from one element's portion of the tank

   Self-test (10 min) — tools: Non-contact voltage tester, Multimeter, Screwdriver

   Shut off the breaker, confirm zero voltage with a non-contact tester, remove the access panel and insulation, disconnect both element wires, and set a multimeter to resistance (ohms) between each element terminal and the bare tank metal.

   Expect: A good element reads infinite resistance (OL) between either terminal and the tank.

   What it means: Any measurable resistance or continuity beep between a terminal and the tank confirms that element is shorted to ground.

   Next step: Replace the shorted element — match wattage (typically 4,500W) and thread type (screw-in or bolt-in) to the original.

   Never skip the voltage-tester confirmation step. Elements carry 240 volts and a shorted one has already proven it can conduct to grounded metal.

   DIY-eligible · DIY $15–$35 for a replacement element · Pro $150–$300 · 45–75 minutes

2. #2

   Failed thermostat shorting the circuit

   The upper and lower thermostats are high-limit safety switches as well as temperature controls. Corrosion, arcing contacts, or a stuck high-limit switch can create an internal short that draws excess current the moment the circuit energizes.

   It's the second most common cause after a shorted element and often trips the breaker only when the thermostat calls for heat rather than instantly on reset.

   Exact symptoms

   • Breaker trips a few seconds to a minute after resetting, not instantly
   • Elements test fine (infinite resistance to tank) when isolated
   • High-limit reset button on the upper thermostat is popped or won't stay reset

   Self-test (8 min) — tools: Multimeter, Flashlight

   With power off and elements confirmed good, visually inspect both thermostats for scorch marks, and check for continuity across the high-limit switch contacts with a multimeter.

   Expect: No visible scorching, and the high-limit switch shows continuity only when its reset button is pressed in.

   What it means: Scorch marks or a switch stuck closed regardless of temperature indicate a failed thermostat causing the short.

   Next step: Replace both thermostats as a set — they're inexpensive and age together.

   DIY-eligible · DIY $20–$40 for a thermostat pair · Pro $150–$275 · 45 minutes

3. #3

   Loose, corroded, or undersized wiring connections

   Loose wire nuts or lugs at the breaker, the disconnect box, or the element terminals create resistance heating at that joint. Over time this can carbonize insulation and cause an intermittent short, or the connection arcs enough to register as a fault to the breaker.

   It's common on older installations or DIY wiring where the circuit was undersized (should be 10-gauge copper for a 30-amp, 4,500W circuit) or where connections were never torqued to spec.

   Exact symptoms

   • Trips intermittently rather than every single time
   • Discoloration, melted insulation, or a burning smell near the wiring compartment
   • Breaker feels warm to the touch even when not recently tripped

   Self-test (6 min) — tools: Flashlight, Screwdriver

   With power off and confirmed dead, visually inspect the wire nuts, lugs, and insulation at the disconnect box and the top of the water heater for scorch marks, melted plastic, or looseness you can wiggle by hand.

   Expect: Connections are tight, wires are firmly seated, and insulation is intact with no discoloration.

   What it means: Any blackened wire nut, melted insulation, or wire that pulls loose by hand confirms a wiring fault.

   Next step: Do not simply retighten a burned connection — cut back to clean copper and use a new connector, or call an electrician if the wire gauge looks undersized.

   Burned insulation on a 240-volt circuit is a fire risk that can recur even after retightening; when in doubt, have a licensed electrician verify wire gauge and connections.

   Professional repair · DIY $0 to inspect · Pro $150–$350 · 1–2 hours

4. #4

   Worn-out or undersized breaker

   Breakers age and can develop a lower trip threshold than their rating after years of normal heating and cooling cycles, tripping under loads the circuit was designed to handle. A breaker that was undersized (below 30 amps) for the water heater's load will also trip under normal operation.

   It's less common but worth ruling out once elements, thermostats, and wiring all test clean — especially on breaker panels 15+ years old or after a recent panel change.

   Exact symptoms

   • Everything else tests normal: elements, thermostats, and wiring all check out
   • Breaker trips under normal, steady load rather than instantly
   • Breaker feels loose in the panel or doesn't click firmly into place when reset

   Self-test (3 min) — tools: Flashlight

   Confirm the breaker's amperage rating printed on its switch matches the water heater's nameplate requirement (typically 30A for a 4,500W element at 240V).

   Expect: Breaker rating matches the nameplate-specified circuit size.

   What it means: A mismatch — such as a 20A breaker on a 30A-rated circuit — means the breaker was wrong for the load from the start.

   Next step: Have an electrician verify wire gauge is rated for a 30A breaker before swapping; wire and breaker size must match.

   Professional repair · DIY $0 to inspect · Pro $100–$200 for a breaker replacement · 30–45 minutes

Match what you can see, hear or smell to the cause it points at, and the safe next step for that reading.

• Breaker trips immediately or within a few seconds of being reset

  Likely cause: Heating element shorted to the tank (grounded element)

  Who should handle it: Homeowner, then licensed electrician

  Next step: Replace the shorted element — match wattage (typically 4,500W) and thread type (screw-in or bolt-in) to the original.

• Breaker trips a few seconds to a minute after resetting, not instantly

  Likely cause: Failed thermostat shorting the circuit

  Who should handle it: Homeowner, then licensed electrician

  Next step: Replace both thermostats as a set — they're inexpensive and age together.

• Trips intermittently rather than every single time

  Likely cause: Loose, corroded, or undersized wiring connections

  Who should handle it: licensed electrician

  Next step: Do not simply retighten a burned connection — cut back to clean copper and use a new connector, or call an electrician if the wire gauge looks undersized.

• Everything else tests normal: elements, thermostats, and wiring all check out

  Likely cause: Worn-out or undersized breaker

  Who should handle it: licensed electrician

  Next step: Have an electrician verify wire gauge is rated for a 30A breaker before swapping; wire and breaker size must match.

1. Shut off the breaker, confirm zero voltage with a non-contact tester, remove the access panel and insulation, disconnect both element wires, and set a multimeter to resistance (ohms) between each element terminal and the bare tank metal. (10 min · Non-contact voltage tester, Multimeter, Screwdriver)Never skip the voltage-tester confirmation step. Elements carry 240 volts and a shorted one has already proven it can conduct to grounded metal.
2. With power off and elements confirmed good, visually inspect both thermostats for scorch marks, and check for continuity across the high-limit switch contacts with a multimeter. (8 min · Multimeter, Flashlight)
3. With power off and confirmed dead, visually inspect the wire nuts, lugs, and insulation at the disconnect box and the top of the water heater for scorch marks, melted plastic, or looseness you can wiggle by hand. (6 min · Flashlight, Screwdriver)Burned insulation on a 240-volt circuit is a fire risk that can recur even after retightening; when in doubt, have a licensed electrician verify wire gauge and connections.
4. Confirm the breaker's amperage rating printed on its switch matches the water heater's nameplate requirement (typically 30A for a 4,500W element at 240V). (3 min · Flashlight)

Never open an electrical panel, relight a burner you can smell gas near, or drain a tank that is scalding hot. Stop and call a licensed electrician instead.

• Heating element shorted to the tank

  DIY cost: $15–$35

  Professional cost: $150–$300

  Typical time: 45–75 minutes

  Who should repair: Homeowner or electrician

• Failed thermostat

  DIY cost: $20–$40

  Professional cost: $150–$275

  Typical time: 45 minutes

  Who should repair: Homeowner or electrician

• Loose, corroded, or undersized wiring

  DIY cost: $0 to inspect

  Professional cost: $150–$350

  Typical time: 1–2 hours

  Who should repair: Electrician

• Worn-out or undersized breaker

  DIY cost: $0 to inspect

  Professional cost: $100–$200

  Typical time: 30–45 minutes

  Who should repair: Electrician

• Test each element's resistance to the tank with a multimeter before assuming which part failed.
• Replace a confirmed-shorted element with one matching wattage and thread type.
• Replace both thermostats together if one shows scorching or a stuck high-limit switch.
• Photograph wiring and connections before disturbing them so a replacement matches the original layout.

• Repeatedly resetting a breaker that trips instantly — it will keep tripping and risks arcing damage.
• Replacing the breaker first without testing the elements and thermostats, when the fault is almost always downstream.
• Installing a higher-amperage breaker to 'stop the tripping' — this defeats the safety protection and is a fire hazard.

• Is it dangerous if my water heater keeps tripping the breaker?+−

  Yes. A tripping breaker usually means a genuine short circuit — most often a heating element shorted to the grounded tank. Repeatedly resetting it without testing risks arcing, wire damage, and fire. Shut off power and test with a multimeter before resetting again.

• Can I test the heating element myself?+−

  Yes, safely, once the breaker is off and confirmed dead with a voltage tester. Disconnect the element wires and measure resistance between each terminal and the bare tank — infinite resistance (OL) is good; any continuity means the element is shorted.

• How much does it cost to fix a water heater that trips the breaker?+−

  A shorted element or bad thermostat typically runs $150–$300 professionally, or $15–$40 in parts if you're comfortable testing and replacing them yourself. Wiring repairs run higher, $150–$350, since they require an electrician.

• Should I just replace the breaker instead of troubleshooting?+−

  No — swapping the breaker without finding the short just moves the risk. If the underlying element or wiring fault remains, the new breaker will trip too, or worse, a mismatched breaker could fail to protect the circuit at all.

• NFPA 70, National Electrical Code — Article 422 — Appliance Branch Circuits and Overcurrent Protection
• NFPA 70, National Electrical Code — Article 240 — Overcurrent Protection
