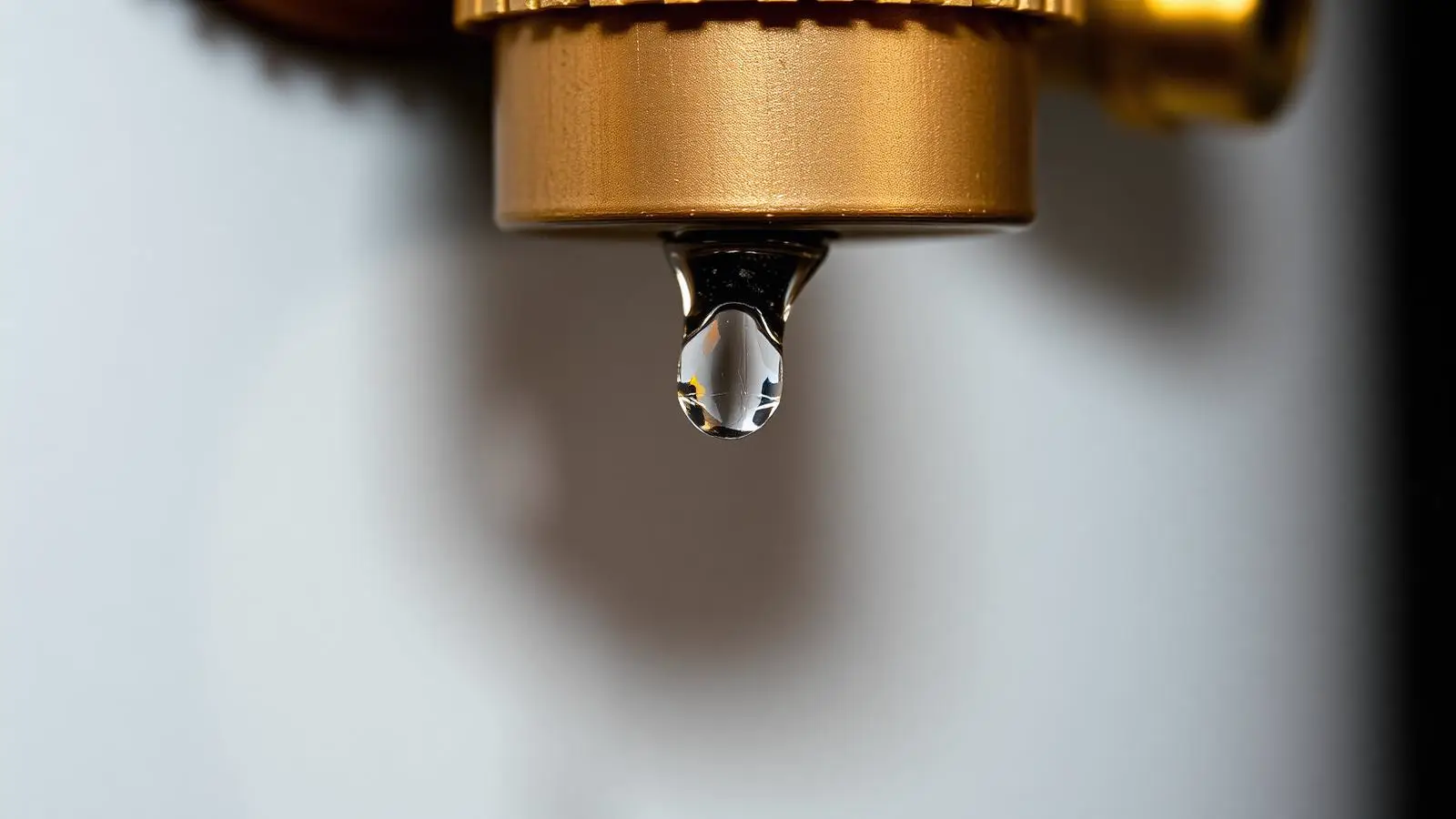

why is my water heater pressure relief valve leaking

• 🟢Usually Manageable

  Monitor it and run the safe checks below before spending money.

• 🟡Inspection Recommended

  Have a professional look at it soon to prevent damage or failure.

  This is the level for this problem: Repair soon.

• 🔴Potentially Serious

  Stop using the appliance and get professional help right away.

• Thread a hose-bib pressure gauge onto an outside spigot.›

  Takes: 8 min · Tools: Water-pressure gauge ($10–$15)

  Thread a hose-bib pressure gauge onto an outside spigot. Read pressure cold, then again 20–30 minutes after a full heating cycle (run several hot taps to trigger one).

  Expect: A rise of more than 10–15 psi between cold and post-heating readings.

  What it means: A large post-heating spike confirms thermal expansion with nowhere to vent, which is what's opening the valve.

  Next step: Install a properly sized and pre-charged thermal expansion tank on the cold-water line.

  Do not attempt to disable the check valve or PRV at the meter — that's the utility's or code-required equipment.

• With no hot water running, screw the gauge onto an outside spigot and read static pressure directly.›

  Takes: 3 min · Tools: Water-pressure gauge

  With no hot water running, screw the gauge onto an outside spigot and read static pressure directly.

  Expect: Static pressure between 40 and 80 psi.

  What it means: Above 80 psi confirms house pressure is the driver, independent of heating.

  Next step: Install or replace a pressure-reducing valve at the main, set to 60–70 psi.

• Run a hot tap for one minute and check the temperature with a kitchen thermometer, or read the digital display if present.›

  Takes: 4 min · Tools: Kitchen or meat thermometer

  Run a hot tap for one minute and check the temperature with a kitchen thermometer, or read the digital display if present.

  Expect: 120 °F is the U.S. DOE-recommended setting.

  What it means: Readings above 130 °F add measurable pressure and scald risk on top of triggering the valve.

  Next step: Turn the thermostat down to 120 °F and re-test the valve over the next few cycles.

• Lift and release the valve's test lever briefly to flush the seat, then dry the discharge pipe outlet and watch it for 10 minutes.›

  Takes: 10 min · Tools: Towel, Bucket

  Lift and release the valve's test lever briefly to flush the seat, then dry the discharge pipe outlet and watch it for 10 minutes.

  Expect: Drip stops within a few minutes after the test-lever flush.

  What it means: If it stops, debris was the cause. If it keeps dripping, the seat or valve body is worn.

  Next step: Flush the tank to reduce sediment; monitor the valve over the next week.

  Water discharged during testing is near tank temperature — keep hands and skin clear of the outlet.

• After confirming pressure (40–80 psi) and temperature (120 °F) are both in range, watch the dry, capped-off discharge outlet for 10 minutes.›

  Takes: 10 min · Tools: Pressure gauge, Thermometer, Towel

  After confirming pressure (40–80 psi) and temperature (120 °F) are both in range, watch the dry, capped-off discharge outlet for 10 minutes.

  Expect: No further drip once pressure and temperature are confirmed normal.

  What it means: Continued dripping under normal conditions means the valve itself has failed internally.

  Next step: Replace the valve — it threads directly into the tank and takes under an hour.

1. #1

   Thermal expansion with no expansion tank

   Most common cause

   Heating water makes it expand roughly 2% in volume. In an older, open plumbing system that extra volume pushed back into the street main. Modern homes with a check valve or pressure-reducing valve at the meter create a closed system, so that expansion has nowhere to go except up through the relief valve.

   It's the single most common cause of relief-valve discharge in homes built or re-plumbed in the last 15–20 years, since check valves and PRVs became standard.

   Exact symptoms

   • Valve drips only after the burner or elements finish a heating cycle
   • Pressure spikes noticeably right after hot water is used heavily
   • A water meter with a visible check valve or a PRV near the main shutoff

   Self-test (8 min) — tools: Water-pressure gauge ($10–$15)

   Thread a hose-bib pressure gauge onto an outside spigot. Read pressure cold, then again 20–30 minutes after a full heating cycle (run several hot taps to trigger one).

   Expect: A rise of more than 10–15 psi between cold and post-heating readings.

   What it means: A large post-heating spike confirms thermal expansion with nowhere to vent, which is what's opening the valve.

   Next step: Install a properly sized and pre-charged thermal expansion tank on the cold-water line.

   Do not attempt to disable the check valve or PRV at the meter — that's the utility's or code-required equipment.

   Professional repair · DIY $15 gauge to diagnose · Pro $150–$350 installed expansion tank · 1 hour

2. #2

   High municipal or well static pressure

   Municipal water pressure varies through the day and can exceed 80 psi, especially at night or downhill from a pump station. The relief valve is set to open at 150 psi, so once static pressure plus expansion gets close, it discharges to protect the tank.

   Homes without a pressure-reducing valve, or with a PRV that's failed, commonly run pressure well above the 80 psi ceiling recommended by plumbing codes.

   Exact symptoms

   • Relief valve drips even without a recent heating cycle
   • Other fixtures feel unusually forceful
   • Banging pipes (water hammer) elsewhere in the house

   Self-test (3 min) — tools: Water-pressure gauge

   With no hot water running, screw the gauge onto an outside spigot and read static pressure directly.

   Expect: Static pressure between 40 and 80 psi.

   What it means: Above 80 psi confirms house pressure is the driver, independent of heating.

   Next step: Install or replace a pressure-reducing valve at the main, set to 60–70 psi.

   Professional repair · DIY $15 gauge · Pro $250–$450 for a PRV · 1–2 hours

3. #3

   Thermostat set too hot

   Every 10 °F above 120 °F raises tank pressure and adds to the thermal-expansion load. A thermostat drifted up to 140–150 °F, or a failing thermostat that overshoots, pushes the system closer to the valve's 150 psi trip point on every cycle.

   It's an easy, no-cost check and a common culprit on older heaters where the thermostat dial has been bumped or set high to stretch hot-water supply.

   Exact symptoms

   • Water at the tap feels scalding, not just hot
   • Discharge coincides with the longest heating cycles
   • Dial or digital setting reads above 120 °F

   Self-test (4 min) — tools: Kitchen or meat thermometer

   Run a hot tap for one minute and check the temperature with a kitchen thermometer, or read the digital display if present.

   Expect: 120 °F is the U.S. DOE-recommended setting.

   What it means: Readings above 130 °F add measurable pressure and scald risk on top of triggering the valve.

   Next step: Turn the thermostat down to 120 °F and re-test the valve over the next few cycles.

   DIY-eligible · DIY $0 · Pro $0–$150 if the thermostat is faulty and needs replacement · 10 minutes

4. #4

   Sediment or mineral debris on the valve seat

   Scale and sediment circulating in the tank can lodge on the valve's rubber seat when it opens even briefly, holding it slightly ajar afterward so it never fully reseals.

   More likely on hard-water supplies or tanks that haven't been flushed in over a year, and usually shows up as a slow, steady weep rather than a pressure-triggered discharge.

   Exact symptoms

   • Continuous slow drip regardless of heating cycle or time of day
   • Tank hasn't been flushed in 12+ months
   • Valve was recently manually tested (lifted its lever)

   Self-test (10 min) — tools: Towel, Bucket

   Lift and release the valve's test lever briefly to flush the seat, then dry the discharge pipe outlet and watch it for 10 minutes.

   Expect: Drip stops within a few minutes after the test-lever flush.

   What it means: If it stops, debris was the cause. If it keeps dripping, the seat or valve body is worn.

   Next step: Flush the tank to reduce sediment; monitor the valve over the next week.

   Water discharged during testing is near tank temperature — keep hands and skin clear of the outlet.

   DIY-eligible · DIY $0 (tank flush) · Pro $100–$150 for a professional flush · 30–45 minutes

5. #5

   Worn or failed relief valve

   Like any mechanical valve, the internal spring and rubber seat wear out over years of cycling, and manufacturers rate them for roughly 5–10 years of service.

   The least likely cause on a heater under five years old, but the default answer once pressure and temperature have both tested normal.

   Exact symptoms

   • Continuous drip after pressure and temperature both test in range
   • Valve is original to a heater older than 6–8 years
   • Drip persists even right after the seat has been flushed

   Self-test (10 min) — tools: Pressure gauge, Thermometer, Towel

   After confirming pressure (40–80 psi) and temperature (120 °F) are both in range, watch the dry, capped-off discharge outlet for 10 minutes.

   Expect: No further drip once pressure and temperature are confirmed normal.

   What it means: Continued dripping under normal conditions means the valve itself has failed internally.

   Next step: Replace the valve — it threads directly into the tank and takes under an hour.

   DIY-eligible · DIY $15–$30 for the valve · Pro $150–$300 · 45–60 minutes

Match what you can see, hear or smell to the cause it points at, and the safe next step for that reading.

• Valve drips only after the burner or elements finish a heating cycle

  Likely cause: Thermal expansion with no expansion tank

  Who should handle it: licensed plumber

  Next step: Install a properly sized and pre-charged thermal expansion tank on the cold-water line.

• Relief valve drips even without a recent heating cycle

  Likely cause: High municipal or well static pressure

  Who should handle it: licensed plumber

  Next step: Install or replace a pressure-reducing valve at the main, set to 60–70 psi.

• Water at the tap feels scalding, not just hot

  Likely cause: Thermostat set too hot

  Who should handle it: Homeowner, then licensed plumber

  Next step: Turn the thermostat down to 120 °F and re-test the valve over the next few cycles.

• Continuous slow drip regardless of heating cycle or time of day

  Likely cause: Sediment or mineral debris on the valve seat

  Who should handle it: Homeowner, then licensed plumber

  Next step: Flush the tank to reduce sediment; monitor the valve over the next week.

• Continuous drip after pressure and temperature both test in range

  Likely cause: Worn or failed relief valve

  Who should handle it: Homeowner, then licensed plumber

  Next step: Replace the valve — it threads directly into the tank and takes under an hour.

1. Thread a hose-bib pressure gauge onto an outside spigot. (8 min · Water-pressure gauge ($10–$15))Do not attempt to disable the check valve or PRV at the meter — that's the utility's or code-required equipment.
2. With no hot water running, screw the gauge onto an outside spigot and read static pressure directly. (3 min · Water-pressure gauge)
3. Run a hot tap for one minute and check the temperature with a kitchen thermometer, or read the digital display if present. (4 min · Kitchen or meat thermometer)
4. Lift and release the valve's test lever briefly to flush the seat, then dry the discharge pipe outlet and watch it for 10 minutes. (10 min · Towel, Bucket)Water discharged during testing is near tank temperature — keep hands and skin clear of the outlet.
5. After confirming pressure (40–80 psi) and temperature (120 °F) are both in range, watch the dry, capped-off discharge outlet for 10 minutes. (10 min · Pressure gauge, Thermometer, Towel)

Never open an electrical panel, relight a burner you can smell gas near, or drain a tank that is scalding hot. Stop and call a licensed plumber instead.

• Thermal expansion, no expansion tank

  DIY cost: $15 gauge

  Professional cost: $150–$350

  Typical time: 1 hour

  Who should repair: Licensed plumber

• High static pressure

  DIY cost: $15 gauge

  Professional cost: $250–$450

  Typical time: 1–2 hours

  Who should repair: Licensed plumber

• Thermostat set too hot

  DIY cost: $0

  Professional cost: $0–$150

  Typical time: 10 minutes

  Who should repair: Homeowner

• Debris on valve seat

  DIY cost: $0

  Professional cost: $100–$150

  Typical time: 30–45 minutes

  Who should repair: Homeowner or plumber

• Worn or failed valve

  DIY cost: $15–$30

  Professional cost: $150–$300

  Typical time: 45–60 minutes

  Who should repair: Homeowner or licensed plumber

• Turn the thermostat down to 120 °F.
• Lift the test lever briefly once to clear debris from the seat, then monitor.
• Check static pressure with a $15 gauge before buying any parts.
• Replace the valve yourself if pressure and temperature both test normal and it's still the valve.

• Swapping the valve first without testing pressure — most replacement valves will open again on the same high-pressure system.
• Wrapping the discharge threads or adding a shutoff to the discharge pipe — this is a code violation and a rupture risk.
• Buying a higher-pressure-rated relief valve to 'stop the leak' — it defeats the safety margin the code requires.

• Is it dangerous if my pressure relief valve is leaking?+−

  A dripping valve is usually not immediately dangerous — it's the valve doing its job. The danger is capping it or ignoring rising pressure; a tank with no working relief path can rupture. Address the underlying pressure cause and never block the valve.

• Can I fix a leaking relief valve myself?+−

  Yes, for the underlying causes: lowering the thermostat, flushing the tank, or installing a $15 pressure gauge to diagnose. Replacing the valve itself is a straightforward DIY job for someone comfortable shutting off water and using a pipe wrench, but if pressure is over 80 psi, fix that first or the new valve will leak too.

• How much water should a relief valve normally discharge?+−

  Almost none. A properly sized system with a working expansion tank and pressure under 80 psi should see the valve stay completely dry between manual tests. Any regular dripping is a sign something upstream needs correcting.

• How often should I test the relief valve?+−

  Manufacturers generally recommend testing by lifting the lever every 6 months to confirm it opens and closes freely. If it doesn't reseal fully after a manual test, replace it immediately rather than waiting.

• American Society of Mechanical Engineers (ASME) — Temperature and Pressure Relief Valve Requirements
• International Code Council — International Plumbing Code, Section 504 — Water Heater Relief Valves
• U.S. Department of Energy — Water Heating — Storage Water Heaters and Maintenance
